MW S-350-12 Switching Power Supplies 450W 12V 37.5A
With RigRunner 405H Power Distributor
MegaWatt S-350-12 30 Amp 9.5-15 Volts Adjustable Ham CB Radio Power Supply 13.8V 12V 33A Peak
- All Power Supplies come with Double Ball Bearing 60,000 hour dust proof Cooling Fans. Adjustable output voltage 9.5 to over 15 volts DC. Comes with a grounded power cord.
- Comes with terminal cover. 30 amp output 33 amp momentary peaks. 30 amps 24 hour continuous use. 120 and 240 Volt AC Input
- Highly filtered and regulated. No RF noise in HAM Radios or CBs.
- Real MegaWatt. Not an offshore clone. This is the one that actually does adjust to over 15 volts and does not make RF noise.
- Auto short circuit and over voltage shut down protection.
Data Sheet: https://www.mouser.com/datasheet/2/260/s-350-spec-1179912.pdf

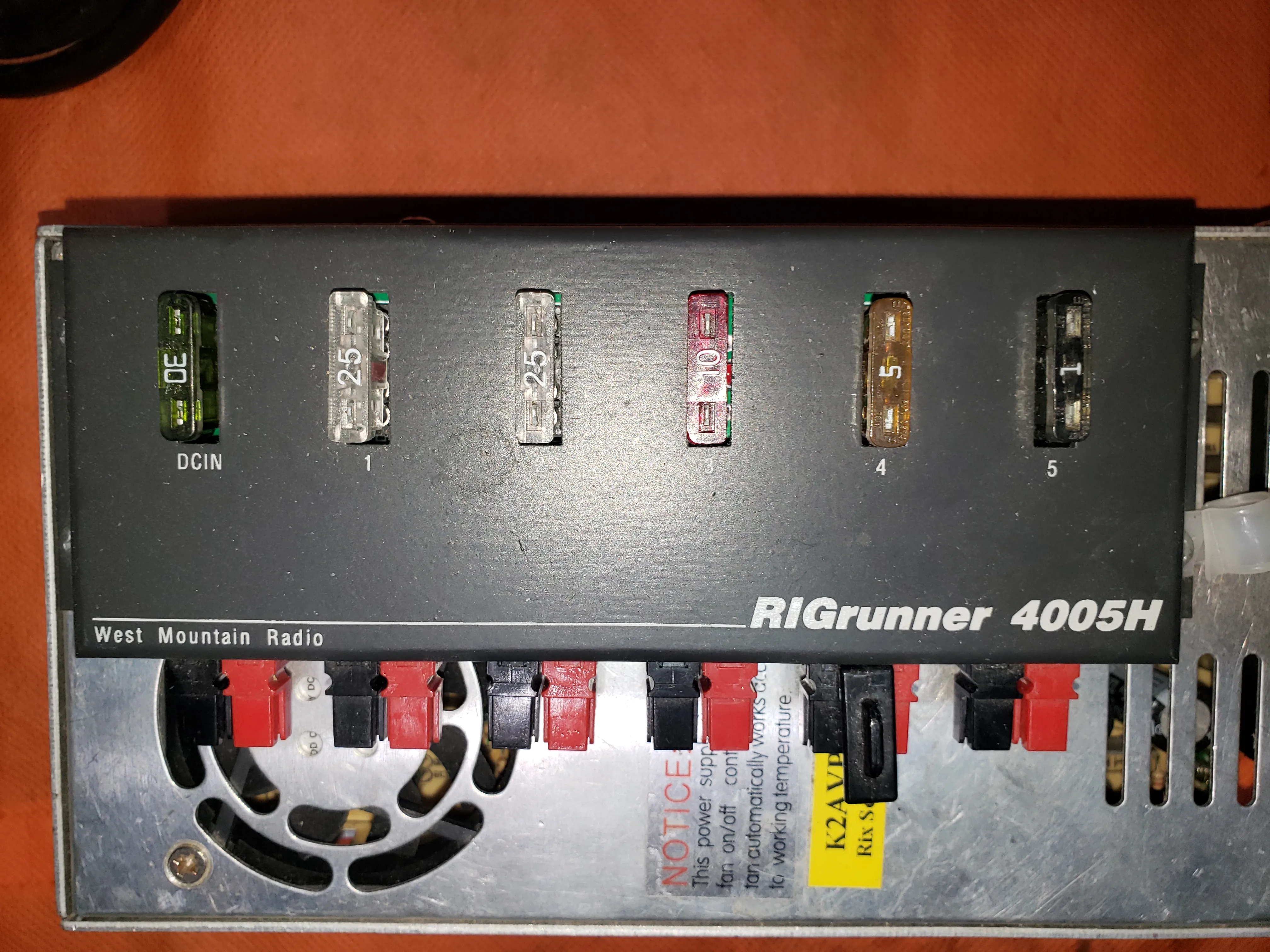

West Mountain Radio RIGrunner 4005H Horizontal
RIGrunner is the most convenient and safest way to connect all of your 12 volt equipment to a reliable Switching Power Supply source. This RIGrunner is available with side mounted Powerpole connectors which enable horizontal mounting. 40 amp 12 VDC continuous duty with 5 outlets.
Specifications
| Overall Dimensions (maximum, w/o cables) | 1.4" H x 7" W x 3.0" D |
| Weight | 7.2 oz. |
| Maximum total current | 40 amps |
| Maximum single individual outlet current | 40 amps (fuse protected) |
| ICAS current rating (fuse limited) | 37 amps |
Construction
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1" wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
RIGrunner is the most convenient and safest way to connect all of your DC equipment to a power source. It uses the excellent Anderson Powerpole® connectors, standardizing all of your DC connections. This RIGrunner can deliver up to 40 amps total through 5 outlets and is available with side mounted Powerpole® connectors. Side mounted connectors enable horizontal mounting.
- 40 amp continuous duty with 5 outlets
Manual: http://www.westmountainradio.com/pdf/RRmanual.pdf
