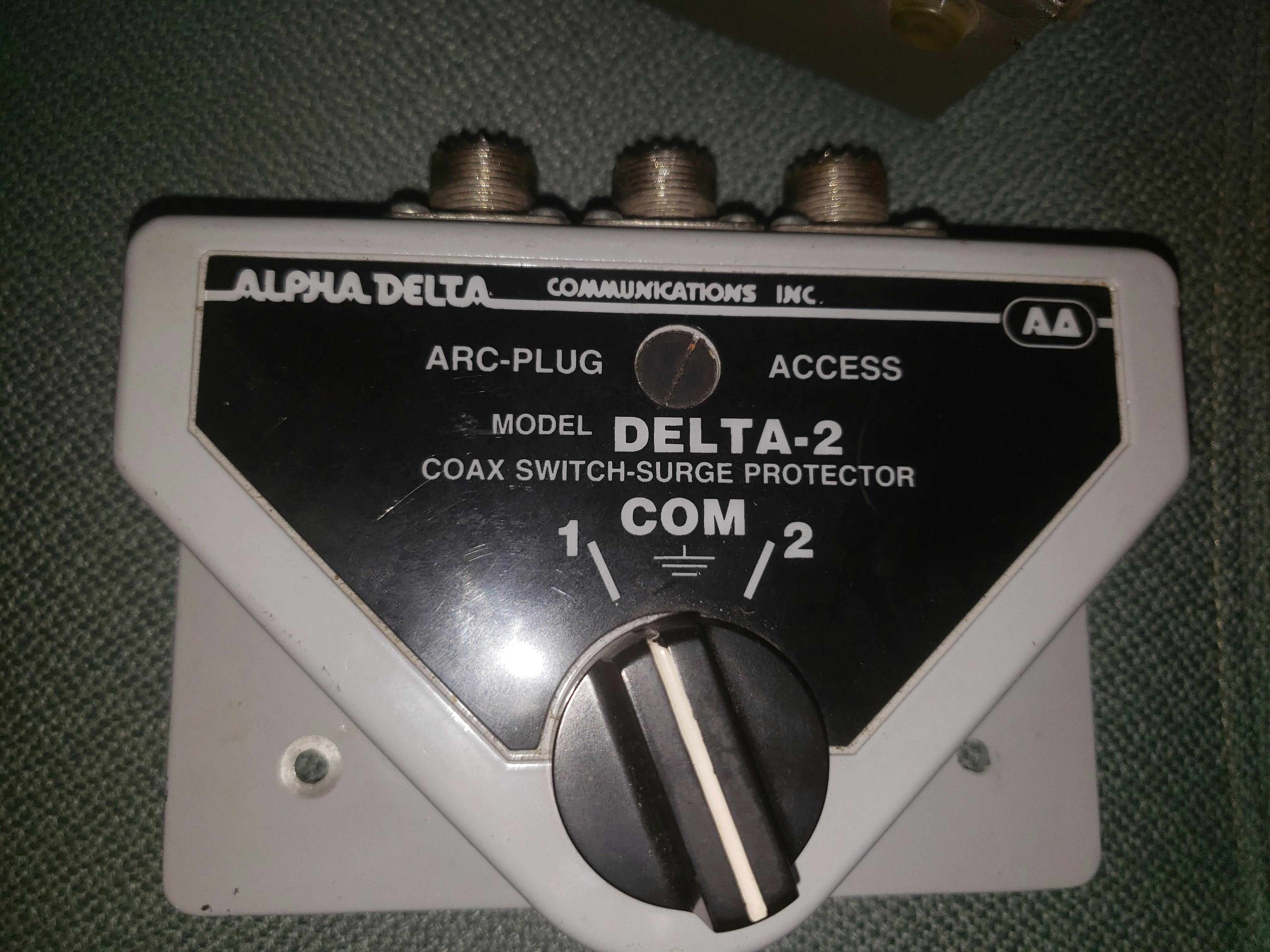

Delta-2 Alpha Delta Original 2-Position Coax Switch,

DELTA-2B Delta-2 Alpha Delta Original 2-Position Coax Switch, SO-239, 2KW - 500MHz

Connector Type Solder
Material Brass
Item Dimensions LxWxH 5.25 x 3.5 x 1.25 inches
Mounting Type Plug-In Mount


About this item

  • Antenna Switch Positions: 2-port
  • Antenna Switch Connector Type: UHF female, SO-239
  • Switch Impedance: 50 ohms, Rated through 500 MHz. 0.10 dB loss to 30 MHz, less than 0.5 dB through 450 MHz.
  • Switch Insertion Loss: Less than 0.10 dB , Switch Isolation: More than 50 dB
  • All Ports Grounded Position: Yes, Power Rating (0 to 30 MHz): 1,500W PEP/1,500 CW

Alpha Delta Coax Switches have a precision-machined switch shaft and quadrant mechanism for more accurate and stable switching performance.

These switches have a low-loss micro-strip cavity design, positive detent switching, master antenna ground function, a front panel removable arc-plug surge protection module, and excellent HF through UHF performance. The unselected antenna ports are grounded for protection and maximum isolation.

Alpha Delta Coax Switches are used worldwide in government, military, and commercial applications and are manufactured in Alpha Delta's ISO-9001 certified production facility in the USA. They come available with either a 2-port or 4-port position, and both have the option of either the UHF female (SO-239) or N female connector.

These switches are all built into the same heavy-duty chassis that is 5.250 x 3.500 x 1.250 in. (WHD), excluding connectors and knob.

Note: When placed in the "COM" position, all switch positions are grounded. When a port is selected, that port is ungrounded while all other ports remain grounded.

Additional features include:

* Higher strength, lower resistance sliver bearing solder
* Durable abrasion resistance with powdercoated finish
* Brass arc-plug housing for improved gas tube positioning

Data Info Sheet:
Coaxial switches have to work every time. Alpha Delta Coax Switches have the quality and reliability you need!
